1-104481-2 | AMP
Receptacle, 0.03-0.09 mm², AWG 32-28, crimp connection, gold-plated, 1-104481-2
Unit Price (€ / pc.)
0.4403 € *
Available: 0 pcs.
Leadtime: On Request **

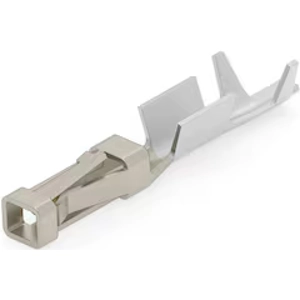

Socket contact, 1-104481-2, TE Connectivity
Applied Pressure: Standard, Connector System: Wire-to-Board, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 300 VAC, Contact Base Material: Copper Alloy C7025, Contact Type: Socket, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 3 A, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 0.64 - 1.52 mm, Wire Size: 32 - 28 AWG, Wire Size: 59.2 - 177.62 CMA, Wire Size: 0.03 -0.09 mm², Operating Temperature Range: -65 - 105 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 32-28 | |
| Insulation diameter | 0.64-1.52 mm | |
| Contact connection | crimp connection | |
| Contact material | copper alloy | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | gold-plated | |
| contact surface | gold-plated | |
| Cable cross-section | 0.03-0.09 mm² |
Download
Logistics
| Country of origin | NL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
