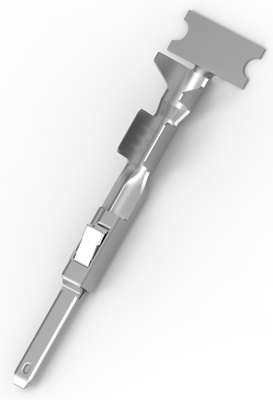

1-1452058-1 | AMP
Tab, 0.75-1.5 mm², AWG 18-15, crimp connection, tin-plated, 1-1452058-1
Unit Price (€ / pc.)
0.3082 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Contacts for motor vehicles, 1-1452058-1, AMP
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 1.5 mm, Mating Tab Thickness: 0.63 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 0.75 - 1.5 mm², Wire Size Search: 0.75 mm², 0.85 mm², 1 mm², 1.25 mm², 1.3 mm², 1.5 mm², Wire Size Search: 15 AWG, 16 AWG, 17 AWG, Wire Insulation Diameter: 1.45 - 2.4 mm, Operating Temperature Range: -40 - 120 °C.
Technical specifications
| Ausführung | Flachstecker | |
| AWG-Leiterquerschnitt | AWG 18-15 | |
| Isolationsdurchmesser | 1,45-2,4 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktoberfläche Anschlussbereich | verzinnt | |
| Kontaktoberfläche | verzinnt | |
| Leiterquerschnitt | 0,75-1,5 mm² |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
