1-66099-5 | AMP

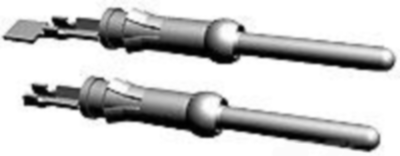

Pin contact, 0.8-1.4 mm², AWG 18-16, crimp connection, tin-plated, 1-66099-5
Unit Price (€ / pc.)
0.8449 € *
Available: 165 pcs.
Available in 5 Days: 19,250 pcs.
Leadtime: 24 Weeks **
Total Price:
0.84 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8449 €
10 pcs.
0.7735 €
50 pcs.
0.7021 €
100 pcs.
0.6307 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin contact, 1-66099-5, AMP
Power Contact Type: Contact, Connector & Contact Terminates To: Wire & Cable, Test Current: 13 A, Contact Shape & Form: Round, Contact Mating Area Plating Material: Tin, Contact Current Rating (Max): 13 A, Contact Type: Pin, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Wire Size: 18 - 16 AWG, Wire Size: 0.8 - 1.4 mm², Accepts Wire Insulation Diameter Range: 2.03 - 2.54 mm, Operating Temperature Range: -55 - 90 °C.
Technical specifications
| Version | Stiftkontakt | |
| Cable cross-section | 0,8-1,4 mm² | |
| AWG cross-section | AWG 18-16 | |
| Contact connection | Crimpanschluss | |
| Contact material | Messing | |
| Contact surface mating area | verzinnt | |
| contact surface | verzinnt | |
| Contact surface Connection range | verzinnt | |
| Insulation diameter | 2,03-2,54 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
