1-66507-0 | AMP

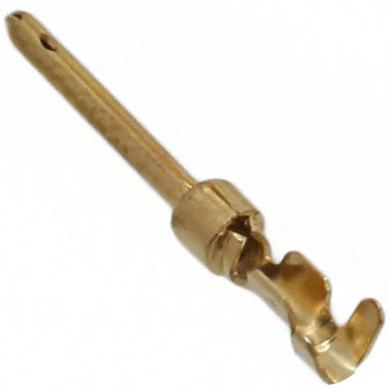

Pin contact, 0.08-0.2 mm², AWG 28-24, crimp connection, gold-plated, 1-66507-0
Unit Price (€ / pc.)
0.2975 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
0.30 € *
Price list
Quantity
Price per unit*
2 pcs.
0.2975 €
10 pcs.
0.2618 €
50 pcs.
0.2309 €
100 pcs.
0.2023 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin contact, 1-66507-0, AMP
Grade: Standard, Connector System: Cable-to-Cable, Connector & Contact Terminates To: Wire & Cable, Contact Underplating Material: Nickel, Contact Type: Pin, D-Sub Contact Size: 20, Contact Base Material: Brass, Contact Mating Area Plating Material: Gold Flash, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: .76 - 1.02 mm, Wire Size: 28 - 24 AWG, Wire Size: 0.08 - 0.2 mm², Operating Temperature Range: -55 - 105 °C, For Use With: AMPLIMITE HDP-20,CPC Connectors.
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 28-24 | |
| Insulation diameter | 0.76-1.02 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface mating area | gold-plated | |
| contact surface | gold-plated | |
| Cable cross-section | 0.08-0.2 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
