1-770255-0 | AMP

Name: Pin contact, 0.5-2 mm², AWG 20-14, crimp connection, 1-770255-0
Brand: AMP
SKU: 71P3412
Price: 1.75 EUR
Availability: OutOfStock

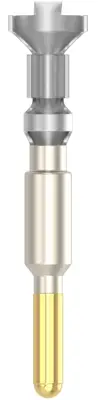

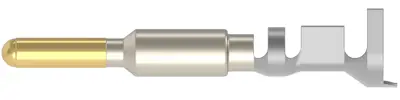

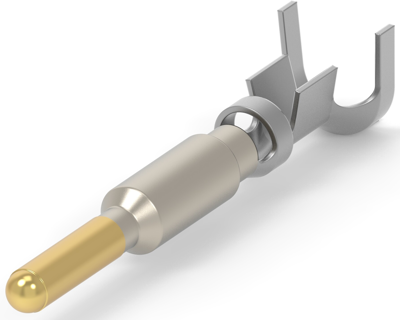

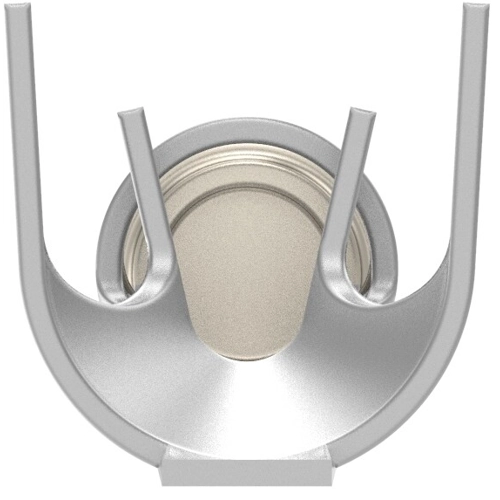

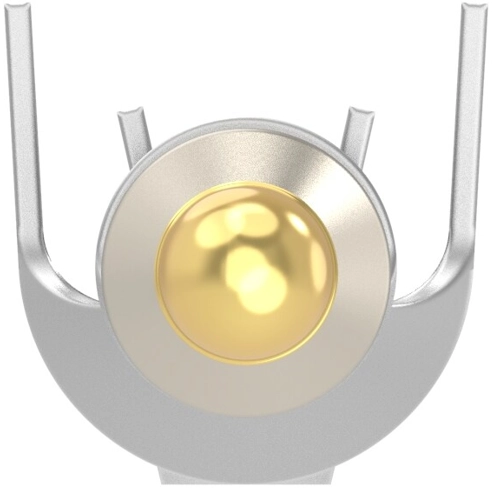

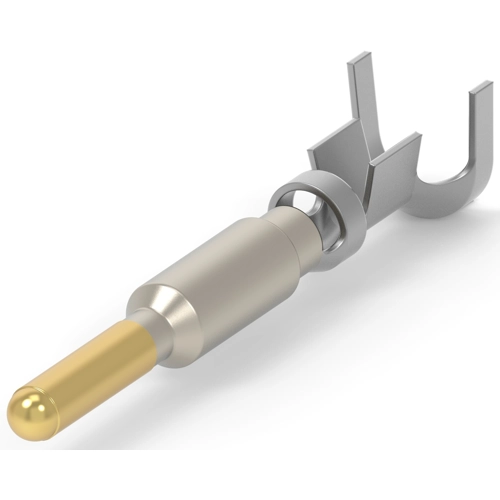

Pin contact, 0.5-2 mm², AWG 20-14, crimp connection, 1-770255-0

Order No.: 71P3412

EAN: 4099889983319

MPN:

1-770255-0

Series: Universal MATE-N-LOK

Image may differ

Key Specification:

Version pin contact

Cable cross-section 0.5-2 mm²

AWG cross-section AWG 20-14

Contact connection crimp connection

Contact material brass

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.7493 € *

Available: 0 pcs.

Available in 5 Days: 1,000 pcs.

Leadtime: 17 Weeks **

Add to Cart

Total Price:

1.75 € *

Price list

Quantity

Price per unit*

55 pcs.

1.7493 €

300 pcs.

1.6541 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Pin contact, 1-770255-0, AMP

Power contact, Contact, 600 VAC, Gold, 20-14 AWG Wire size, 0.5-2 mm² Wire size, Wire & Cable, Crimp, Power, Pin.

Technical specifications

	Version	pin contact
	AWG cross-section	AWG 20-14
	Insulation diameter	3.3-5.08 mm
	Contact connection	crimp connection
	Contact material	brass
	Contact surface Connection range	tin-plated
	Contact surface mating area	gold-plated
	Cable cross-section	0.5-2 mm²
