1-794607-1 | AMP
Receptacle, 0.05-0.14 mm², AWG 30-26, crimp connection, tin-plated, 1-794607-1
Unit Price (€ / pc.)
0.0821 € *
Available: 0 pcs.
Available in 5 Days: 30,000 pcs.
Leadtime: 35 Weeks **
Total Price:
0.08 € *
Price list
Quantity
Price per unit*
15000 pcs.
0.0821 €
30000 pcs.
0.0750 €
*incl. VAT plus shipping costs
**Subject to prior sale

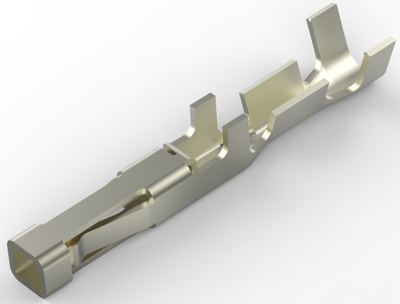

Female contact on original reels, 15000 female contact.
For series Micro Mate-N-Lok. Contact material: Phosphor bronze. Insulation Diameter: 0.89 to 1.52 mm.
Technical attributes (type, cross section, length, contact finish): 1-0794607-1, 0.05 to 0.12mm²² (AWG 30 bis 26), 12,17 mm, 15 µ gold-plated.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 30-26 | |
| Insulation diameter | 0.89-1.52 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | gold-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.05-0.14 mm² |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
