1-794608-1 | AMP

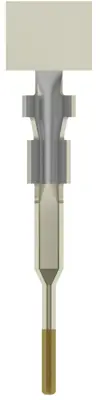

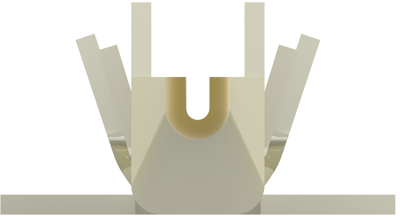

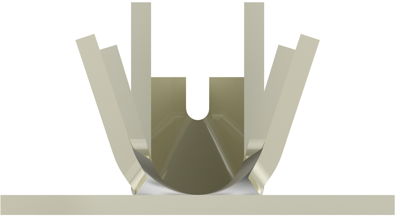

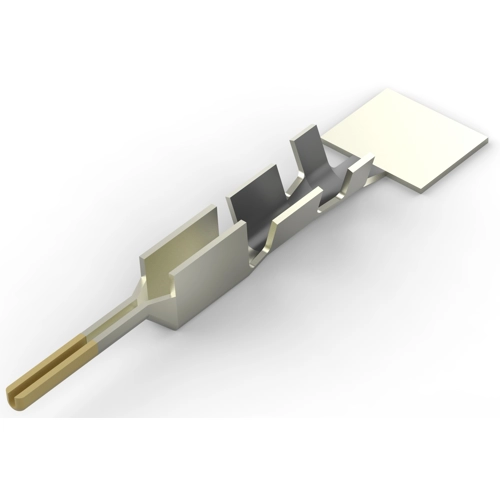

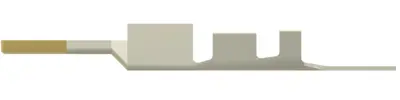

Pin contact, 0.2-0.5 mm², AWG 24-20, crimp connection, gold-plated, 1-794608-1
Unit Price (€ / pc.)
0.0881 € *
Available: 0 pcs.
Available in 5 Days: 20,000 pcs.
Leadtime: 21 Weeks **
Male contact on original reels, 10000 male contact.
For series Micro Mate-N-Lok. Contact material: brass. Insulation Diameter: 0.89 to 1.52 mm.
Technical attributes (type, cross-section, length, contact finish): 1-0794608-1, 0.2 to 0.5mm²² (AWG 30 bis 26), 13,73 mm, 15 µ gold-plated.
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 24-20 | |
| Insulation diameter | 0.89-1.52 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| contact surface | gold-plated | |
| Cable cross-section | 0.2-0.5 mm² |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
