1-794608-2 | AMP

Pin contact, 0.2-0.5 mm², AWG 24-20, crimp connection, gold-plated, 1-794608-2

Order No.: 71F7259
EAN: 4099889662658
MPN:
1-794608-2
1-0794608-2
AMP

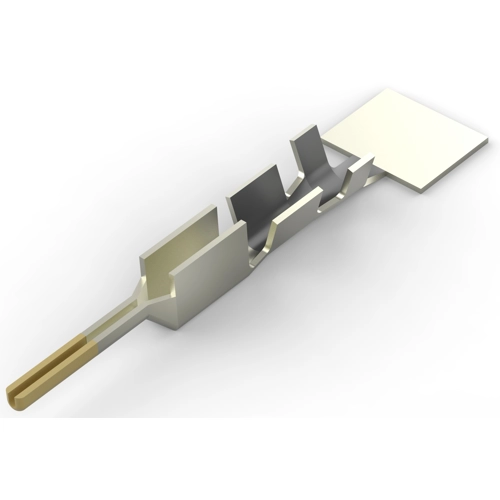

1-794608-2 AMP Crimp Contacts
Image may differ
Unit Price (€ / pc.)
0.1154 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.12 € *
*incl. VAT plus shipping costs
**Subject to prior sale
20000 pcs.
0.1154 €

Male contact on original reels, 10000 male contact.

For series Micro Mate-N-Lok. Contact material: brass. Insulation Diameter: 0.89 to 1.52 mm.

Technical attributes (type, cross-section, length, contact finish): 1-0794608-2, 0.2 to 0.5mm²² (AWG 30 bis 26), 13,73 mm, 30 µ gold-plated.

Technical specifications
Version pin contact
AWG cross-section AWG 24-20
Insulation diameter 0.89-1.52 mm
Contact connection crimp connection
Contact material brass
Contact surface Connection range tin-plated
Contact surface mating area gold-plated
contact surface gold-plated
Cable cross-section 0.2-0.5 mm²
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
