1-794609-0 | AMP

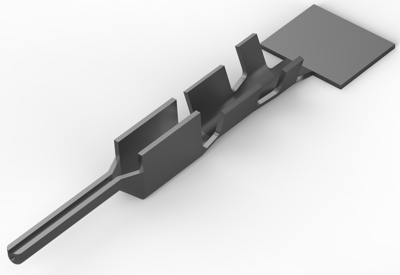

Pin contact, 0.05-0.14 mm², AWG 30-26, crimp connection, tin-plated, 1-794609-0
Unit Price (€ / pc.)
0.0488 € *
Available: 0 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 24 Weeks **
Total Price:
0.05 € *
Price list
Quantity
Price per unit*
10000 pcs.
0.0488 €
20000 pcs.
0.0417 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male contact on original reels, 10000 male contact.
For series Micro Mate-N-Lok. Contact material: brass. Insulation Diameter: 0.89 to 1.52 mm.
Technical attributes (type, cross-section, length, contact finish): 1-0794609-0, 0.05 to 0.12mm²² (AWG 30 bis 26), 13,73 mm, tinned.
Technical specifications
| Ausführung | Stiftkontakt | |
| AWG-Leiterquerschnitt | AWG 30-26 | |
| Isolationsdurchmesser | 0,89-1,52 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Messing | |
| Kontaktoberfläche Anschlussbereich | verzinnt | |
| Kontaktoberfläche Steckbereich | verzinnt | |
| Kontaktoberfläche | verzinnt | |
| Leiterquerschnitt | 0,05-0,14 mm² |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
