1-794612-0 | AMP
Pin contact, 0.2-0.5 mm², AWG 24-20, crimp connection, tin-plated, 1-794612-0
Unit Price (€ / pc.)
0.2392 € *
Available: 2,900 pcs.
Leadtime: 26 Weeks **
Total Price:
11.96 € *
Price list
Quantity
Price per unit*
50 pcs.
0.2392 €
100 pcs.
0.2118 €
500 pcs.
0.1880 €
1000 pcs.
0.1595 €
*incl. VAT plus shipping costs
**Subject to prior sale

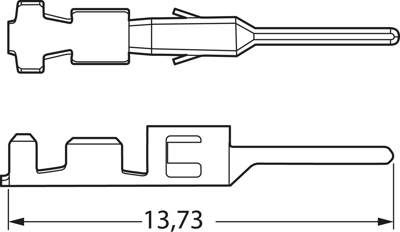

Corresponding snap-in male crimp contact.
Contact material: brass. Contact finish: tinned, 15 µ gold-plated oder 30 µ gold-plated. Wire cross-section: 0.05 to 0.12 mm² (AWG 30-26) or 0.20 to 0.50 mm² (AWG 24-20). Insulation diameter: 0.89 to 1.52 mm.
Single articles.
Technical attributes (type, for wire cross-section, contact finish material): 1-0794612-0, 0.20 to 0.50 mm² (AWG 24 bis 20), tinned
Technical specifications
| Ausführung | Stiftkontakt | |
| AWG-Leiterquerschnitt | AWG 24-20 | |
| Isolationsdurchmesser | 0,89-1,52 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Messing | |
| Kontaktoberfläche Anschlussbereich | verzinnt | |
| Kontaktoberfläche Steckbereich | verzinnt | |
| Kontaktoberfläche | verzinnt | |
| Leiterquerschnitt | 0,2-0,5 mm² |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369040 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
