1-794613-0 | AMP
Pin contact, 0.05-0.13 mm², AWG 30-26, crimp connection, tin-plated, 1-794613-0
Unit Price (€ / pc.)
0.1428 € *
Available: 2,050 pcs.
Available in 5 Days: 6,677 pcs.
Leadtime: 26 Weeks **
Total Price:
0.71 € *
Price list
Quantity
Price per unit*
5 pcs.
0.1428 €
10 pcs.
0.1261 €
50 pcs.
0.1071 €
100 pcs.
0.0881 €
*incl. VAT plus shipping costs
**Subject to prior sale

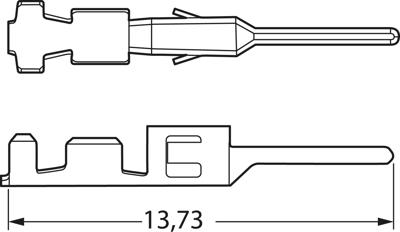

Corresponding snap-in male crimp contact.
Contact material: brass. Contact finish: tinned, 15 µ gold-plated oder 30 µ gold-plated. Wire cross-section: 0.05 to 0.12 mm² (AWG 30-26) or 0.20 to 0.50 mm² (AWG 24-20). Insulation diameter: 0.89 to 1.52 mm.
Single articles.
Technical attributes (type, for wire cross-section, contact finish material): 1-0794613-0, 0.05 to 0.12 mm² (AWG 30 bis 26), tinned
Technical specifications
| Ausführung | Stiftkontakt | |
| AWG-Leiterquerschnitt | AWG 30-26 | |
| Isolationsdurchmesser | 0,89-1,52 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Messing | |
| Kontaktoberfläche Anschlussbereich | verzinnt | |
| Kontaktoberfläche Steckbereich | verzinnt | |
| Kontaktoberfläche | verzinnt | |
| Leiterquerschnitt | 0,05-0,13 mm² |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
