1-962842-1 | AMP
Tab, 1.0-2.5 mm², AWG 17-13, crimp connection, tin-plated, 1-962842-1
Order No.: 36P3537
EAN: 4099889645842
MPN:
1-962842-1
Unit Price (€ / pc.)
0.1571 € *
Available: 0 pcs.
Available in 5 Days: 10,500 pcs.
Leadtime: 29 Weeks **
Total Price:
0.16 € *
Price list
Quantity
Price per unit*
3500 pcs.
0.1571 €
7000 pcs.
0.1440 €
*incl. VAT plus shipping costs
**Subject to prior sale

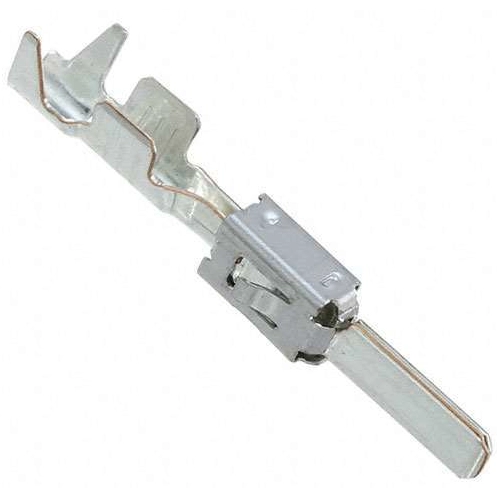

Tab contact, 1-962842-1, AMP
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Locking Lance, Crimp Type: F-Crimp, Terminal Type: Tab, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Interface Plating: Tin (Sn), Termination Method to Wire & Cable: Crimp, Product Terminates To: Wire, Wire Size: 17 - 13 AWG, Wire Size: 1 - 2.5 mm², Wire Size Search: 1 mm², 1.25 mm², 1.5 mm², 2 mm², 2.5 mm², Wire Size Search: 13 AWG, 14 AWG, 15 AWG, 16 AWG, 17 AWG, Wire Insulation Diameter: 2.1 - 2.9 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 - 130 °C, Compatible With Wire Base Material: Copper.
Technical specifications
| Version | tab | |
| AWG cross-section | AWG 17-13 | |
| Insulation diameter | 2.1-2.9 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 1.0-2.5 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 3,500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
