1-968849-1 | AMP
Receptacle, 0.5-1.0 mm², AWG 20-17, crimp connection, tin-plated, 1-968849-1
Unit Price (€ / pc.)
0.2487 € *
Available: 31,260 pcs.
Leadtime: 30 Weeks **
Total Price:
4.97 € *
Price list
Quantity
Price per unit*
20 pcs.
0.2487 €
50 pcs.
0.2190 €
200 pcs.
0.1940 €
500 pcs.
0.1654 €
*incl. VAT plus shipping costs
**Subject to prior sale

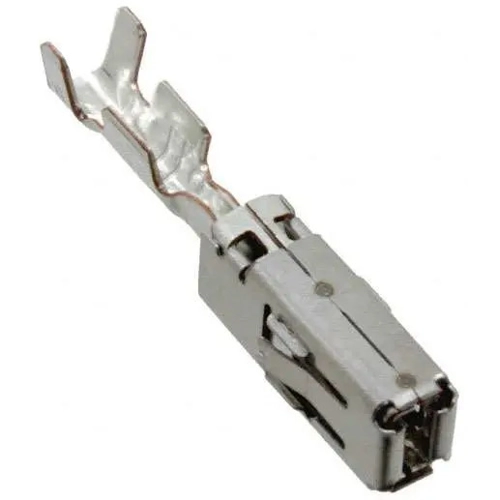

Socket contact, 1-968849-1, AMP
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Locking Lance, Crimp Type: F-Crimp, Terminal Type: Receptacle, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Interface Plating: Tin (Sn), Termination Method to Wire & Cable: Crimp, Product Terminates To: Wire, Wire Size: 20 - 17 AWG, Wire Size: 0.5 - 1 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 1 mm², Wire Size Search: 17 AWG, 18 AWG, 19 AWG, 20 AWG, Wire Insulation Diameter: 1.3 - 2.1 mm, Insulation Requirement: Uninsulated,, Operating Temperature Range: -40 - 130 °C, Compatible With Wire Base Material: Copper.
Technical specifications
| Ausführung | Buchsenkontakt | |
| AWG-Leiterquerschnitt | AWG 20-17 | |
| Isolationsdurchmesser | 1,4-2,1 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Kupfer-Nickel-Legierung | |
| Kontaktoberfläche Anschlussbereich | verzinnt | |
| Kontaktoberfläche | verzinnt | |
| Leiterquerschnitt | 0,5-1,0 mm² |
Download
Logistics
| Ursprungsland | NL |
| Zolltarifnummer | 85369010 |
| Originalverpackung | Rolle mit 4.500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
