102100-5 | AMP
Receptacle, 0.3-0.9 mm², AWG 22-18, crimp connection, tin-plated, 102100-5
Unit Price (€ / pc.)
0.2963 € *
Available: 0 pcs.
Available in 5 Days: 45,800 pcs.
Leadtime: 73 Weeks **
Total Price:
0.30 € *
Price list
Quantity
Price per unit*
5000 pcs.
0.2963 €
10000 pcs.
0.2796 €
*incl. VAT plus shipping costs
**Subject to prior sale

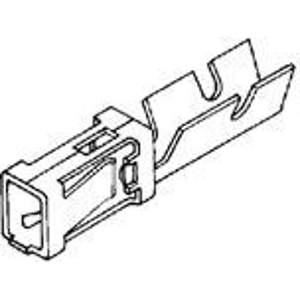

Socket contact, 102100-5, AMP
Applied Pressure: High, Connector System: Board-to-Board, Connector & Contact Terminates To: Wire & Cable, Contact Resistance: 12 mΩ, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Tin, Contact Orientation: Straight, Contact Current Rating (Max): 5 A, PCB Mount Retention: Without, Connector Mounting Type: Board Mount, Centerline (Pitch): 3.81 mm, Accepts Wire Insulation Diameter Range: 1.3 - 2.29 mm, Wire Size: 22 - 18 AWG, Wire Size: 0.3 - 0.9 mm², Operating Temperature Range: -65 - 105 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 22-18 | |
| Insulation diameter | 1.3-2.29 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.3-0.9 mm² |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
