1123721-2 | AMP

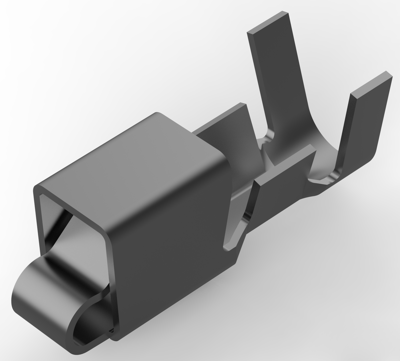

Receptacle, 0.3-0.89 mm², AWG 22-18, crimp connection, tin-plated, 1123721-2
Unit Price (€ / pc.)
0.0774 € *
Available: 0 pcs.
Available in 5 Days: 120,000 pcs.
Leadtime: 21 Weeks **
Total Price:
0.08 € *
Price list
Quantity
Price per unit*
4000 pcs.
0.0774 €
12000 pcs.
0.0762 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power contact, 1123721-2, AMP
Power contact Type: Contact, Connector System: Wire-to-Board, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Operating Voltage: 250 VDC, Contact Shape & Form: Single Beam in Box, Contact Mating Area Plating Material: Tin, Contact Current Rating (Max): 8 A, Contact Type: Receptacle, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Wire Size: 22 - 18 AWG, Wire Size: 0.3 - 0.89 mm², Wire Size: 642 - 1624 CMA, Accepts Wire Insulation Diameter Range: 1.7 - 3 mm, Height: 3.8 mm, Operating Temperature Range: -25 - 105 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 22-18 | |
| Insulation diameter | 1.7-3 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.3-0.89 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
