1217094-2 | AMP

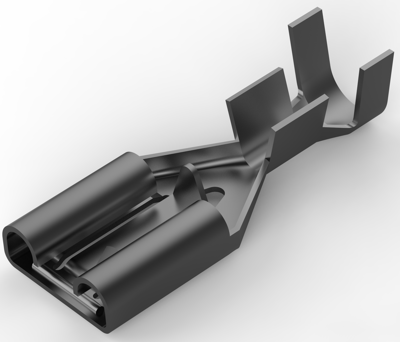

Receptacle, AWG 18-14, crimp connection, tin-plated, 1217094-2
Unit Price (€ / pc.)
0.1166 € *
Available: 0 pcs.
Available in 5 Days: 120,000 pcs.
Leadtime: 26 Weeks **
Total Price:
1,166.20 € *
Price list
Quantity
Price per unit*
10000 pcs.
0.1166 €
20000 pcs.
0.1131 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connector contact, 1217094-2, AMP
Discrete Wire Type: Stranded, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 240 VAC, Operating Voltage: 240 VDC, Contact Type: Socket, Contact Mating Area Plating Material: Tin, Wire Contact Termination Area Plating Material: Tin, Contact Retention Within Housing: Without, Contact Base Material: Brass, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Size: 18 - 14 AWG, Packaging Method: Strip
Technical specifications
| Version | Buchsenkontakt | |
| AWG cross-section | AWG 18-14 | |
| Insulation diameter | 2,29-3,94 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Messing | |
| Contact surface Connection range | verzinnt | |
| Contact surface mating area | verzinnt | |
| contact surface | verzinnt |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
