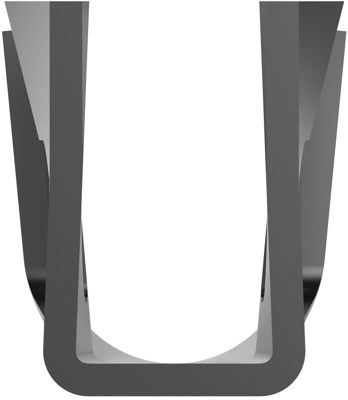

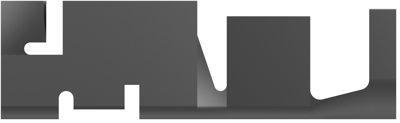

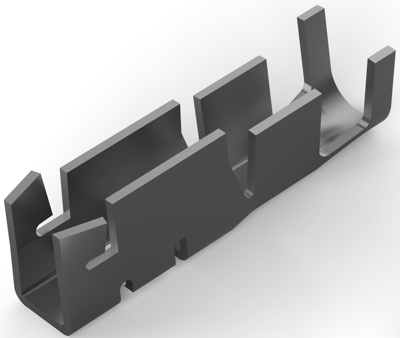

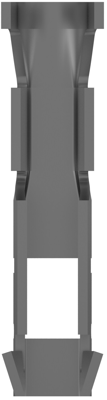

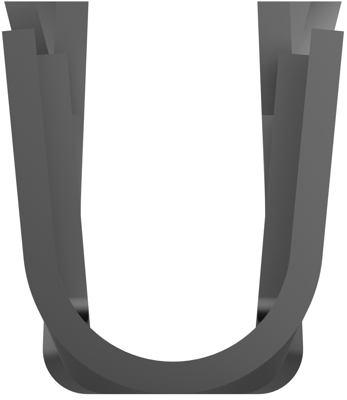

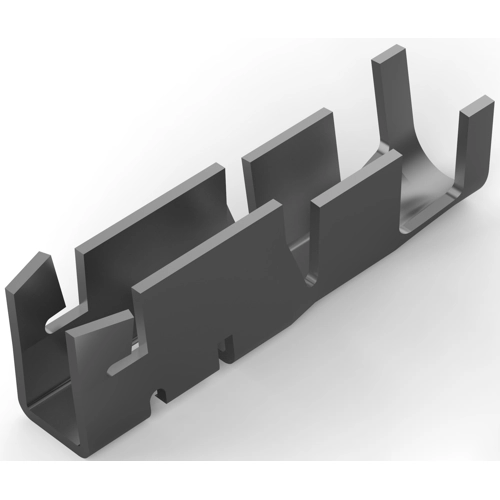

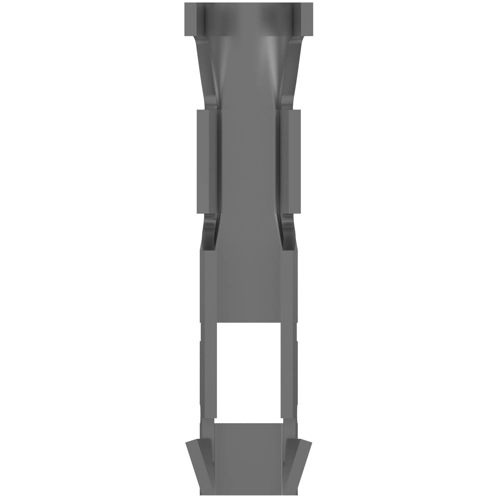

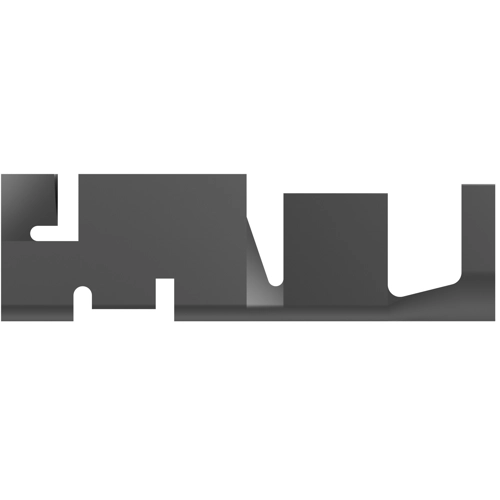

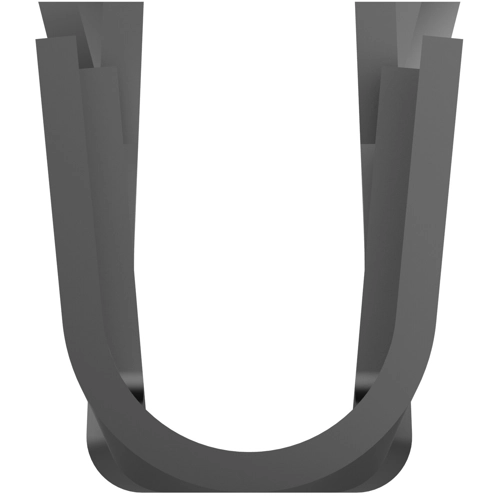

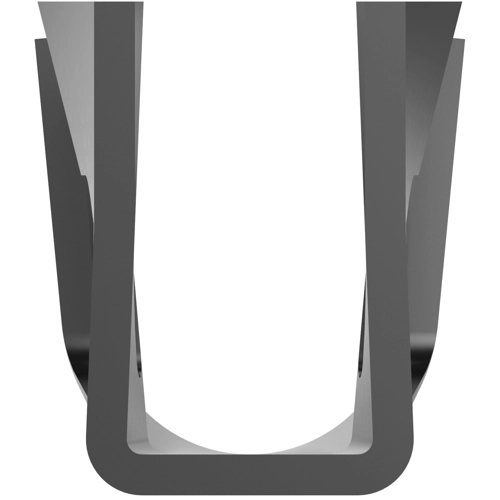

1217175-1 | AMP
Tab, 2.0-6.0 mm², AWG 14-10, 1217175-1
Order No.: 34P8923
EAN: 4099889614435
MPN:
1217175-1
Unit Price (€ / pc.)
0.2332 € *
Available: 0 pcs.
Leadtime: On Request **
Magnet Wire Terminals, 1217175-1, TE Connectivity
Support Style: Insulation Support, Magnet Wire Terminal Wire/Cable Type: Lead Wire, Sealable: No, Magnet Wire Terminal Plating Material: Post-Tin, Terminal & Splice Type: Receptacle, Magnet Wire Terminal Terminal Type: Receptacle, Magnet Wire Terminal Mating Pin Diameter: 3.18 mm, Magnet Wire Terminal Terminal Orientation: Straight, Magnet Wire Terminal Termination Method: Crimp, Crimp Area Length: 8.76 mm, Wire Insulation Support: With, Terminal Height: 6.1 mm, Magnet Wire Terminal Wire Insulation Diameter (Max): 4.32 mm, Accepts Wire Insulation Diameter Range: 3.3-4.32 mm, Wire Size: 14-10 AWG, Wire Size: 2-6 mm², Packaging Quantity: 9000, Magnet Wire Terminal Packaging Method: Reel, Comment: High Retention Force
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 14-10 | |
| Cable cross-section | 2.0-6.0 mm² |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
