1241608-1 | AMP
Receptacle, 0.75-1.5 mm², AWG 18-15, crimp connection, tin-plated, 1241608-1
Unit Price (€ / pc.)
0.0940 € *
Available: 0 pcs.
Available in 5 Days: 1,207,000 pcs.
Leadtime: 29 Weeks **
Total Price:
0.09 € *
Price list
Quantity
Price per unit*
8500 pcs.
0.0940 €
17000 pcs.
0.0916 €
*incl. VAT plus shipping costs
**Subject to prior sale

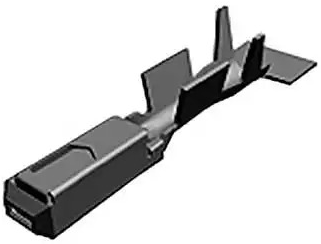

Socket contact, 1241608-1, AMP
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Crimp Type: F-Crimp, Terminal Type: Receptacle, Mating Tab Width: 1.5 mm, Mating Tab Thickness: 0.63 mm, Interface Plating: Tin (Sn), Termination Method to Wire & Cable: Crimp, Product Terminates To: Wire, Wire Size: 18 - 15 AWG, Wire Size: 0.75 - 1.5 mm², Wire Size Search: 0.75 mm², 1 mm², 1.25 mm², 1.5 mm², Wire Size Search: 15 AWG, 16 AWG, 17 AWG, 18 AWG, Wire Insulation Diameter: 1.7 - 2.4 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 - 120 °C, Compatible With Wire Base Material: Copper.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 18-15 | |
| Insulation diameter | 1.7-2.4 mm | |
| Contact connection | crimp connection | |
| Contact material | copper alloy | |
| Contact surface Connection range | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.75-1.5 mm² |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 8,500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
