1318912-1 | AMP

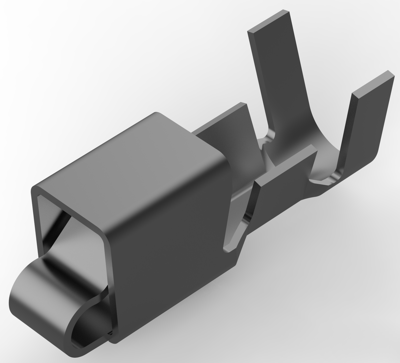

Receptacle, 0.33-0.82 mm², AWG 22-18, crimp connection, tin-plated, 1318912-1
Unit Price (€ / pc.)
0.2773 € *
Available: 0 pcs.
Available in 5 Days: 33,936 pcs.
Leadtime: 14 Weeks **
Total Price:
1.39 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2773 €
100 pcs.
0.2440 €
250 pcs.
0.2154 €
500 pcs.
0.1761 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power contact, 1318912-1, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Board, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Operating Voltage: 250 VDC, Contact Shape & Form: Single Beam in Box, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 8 A, Contact Type: Receptacle, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 22 - 18 AWG, Wire Size: 0.33 -0.82 mm², Accepts Wire Insulation Diameter Range: 1.7 - 3 mm, Height: 3.8 mm, Operating Temperature Range: -25 - 105 °C.
Technical specifications
| Version | Buchsenkontakt | |
| Cable cross-section | 0,33-0,82 mm² | |
| AWG cross-section | AWG 22-18 | |
| Contact connection | Crimpanschluss | |
| Contact material | Phosphorbronze | |
| Contact surface mating area | verzinnt | |
| contact surface | verzinnt | |
| Contact surface Connection range | verzinnt | |
| Insulation diameter | 1,7-3 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
