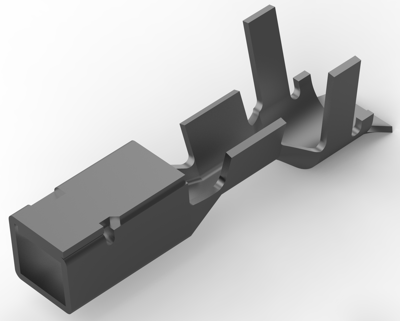

1376348-1 | AMP
Receptacle, 0.2-0.52 mm², AWG 24-20, crimp connection, tin-plated, 1376348-1
Order No.: 35P3782
EAN: 4099889637014
MPN:
1376348-1
Unit Price (€ / pc.)
0.0821 € *
Available: 0 pcs.
Available in 5 Days: 15,000 pcs.
Leadtime: 18 Weeks **
Total Price:
0.08 € *
Price list
Quantity
Price per unit*
5000 pcs.
0.0821 €
10000 pcs.
0.0714 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power contact, 1376348-1, AMP
Power contact Type: Contact, Connector System: Wire-to-Board,Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 300 VAC, Insulation Resistance: 1000, Contact Shape & Form: Dual Beam, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 7 A, Contact Type: Receptacle, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 24 - 20 AWG, Wire Size: 0.2 - 0.52 mm², Accepts Wire Insulation Diameter Range: 1.7 - 2.7 mm, Operating Temperature Range: -30 - 105 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 24-20 | |
| Insulation diameter | 1.7-2.7 mm | |
| Contact connection | crimp connection | |
| Contact material | copper alloy | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.2-0.52 mm² |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
