1445996-1 | AMP
Tab, 21 mm², AWG 4, crimp connection, silver-plated, 1445996-1
Unit Price (€ / pc.)
4.4863 € *
Available: 0 pcs.
Leadtime: On Request **

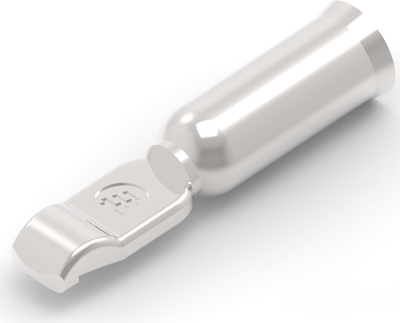

Power contact, 1445996-1, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Silver, Contact Current Rating (Max): 120 A, Contact Type: Tab, Contact Retention Within Housing: With, Mating Tab Width: 10.6 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Size: 4 AWG, Wire Size: 21 mm², Wire Size: 41444 CMA, Operating Temperature Range: -40 - 105 °C.
Technical specifications
| Version | tab | |
| AWG cross-section | AWG 4 | |
| Contact connection | crimp connection | |
| Contact material | copper alloy | |
| Contact surface Connection range | silver-plated | |
| Contact surface mating area | silver-plated | |
| contact surface | silver-plated | |
| Cable cross-section | 21 mm² |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
