144969-1 | AMP

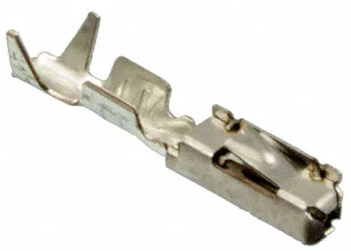

Receptacle, 0.2-0.6 mm², AWG 24-19, crimp connection, tin-plated, 144969-1
Unit Price (€ / pc.)
0.0524 € *
Available: 0 pcs.
Available in 5 Days: 165,000 pcs.
Leadtime: 29 Weeks **
Total Price:
0.05 € *
Price list
Quantity
Price per unit*
11000 pcs.
0.0524 €
22000 pcs.
0.0488 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contacts for motor vehicles, 144969-1, TE Connectivity
Sealable: No, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 0.63 mm, Mating Tab Thickness: .63 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 24 - 20 AWG, Wire Size: 0.2 - 0.6 mm², Wire Size Search: 0.2 mm², 0.22 mm², 0.25 mm², 0.3 mm², 0.35 mm², 0.4 mm², 0.5 mm², 0.6 mm², Wire Size Search: 20 AWG, 21 AWG, 22 AWG, 23 AWG, Wire Insulation Diameter: 1.9 mm, Operating Temperature Range: -40 - 120 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 24-19 | |
| Insulation diameter | 1.9 mm | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.2-0.6 mm² |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 11,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
