1564982-1 | AMP

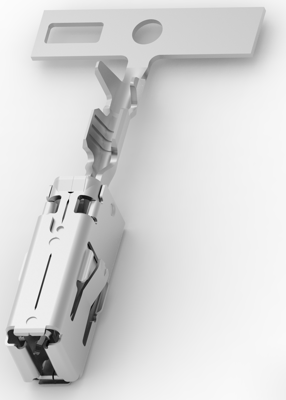

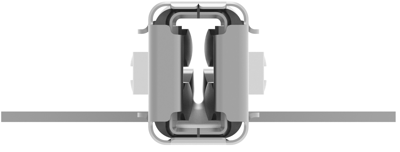

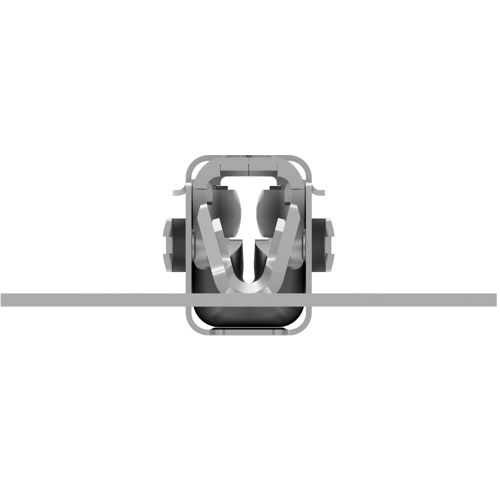

Receptacle, 0.2-0.35 mm², AWG 24-22, crimp connection, tin-plated, 1564982-1
Unit Price (€ / pc.)
0.3213 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.32 € *
Price list
Quantity
Price per unit*
2 pcs.
0.3213 €
10 pcs.
0.2987 €
100 pcs.
0.2689 €
500 pcs.
0.2416 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contacts for motor vehicles, 1564982-1, TE Connectivity
Sealable: No, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.6 mm, 0.8 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 0.2 - 0.35 mm², Wire Size Search: 0.2 mm², 0.22 mm², 0.25 mm², 0.3 mm², 0.35 mm², Wire Insulation Diameter: 3.4 mm, Operating Temperature Range: -40 - 130 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 24-22 | |
| Insulation diameter | 3.4 mm | |
| Contact connection | crimp connection | |
| Contact material | copper-nickel alloy | |
| contact surface | tin-plated | |
| Cable cross-section | 0.2-0.35 mm² |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
