1586315-2 | AMP

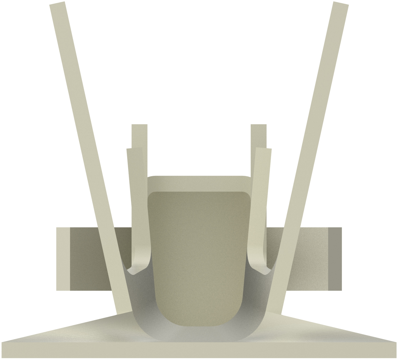

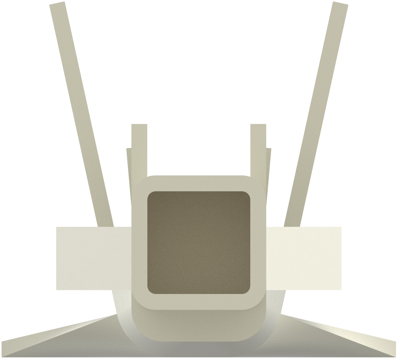

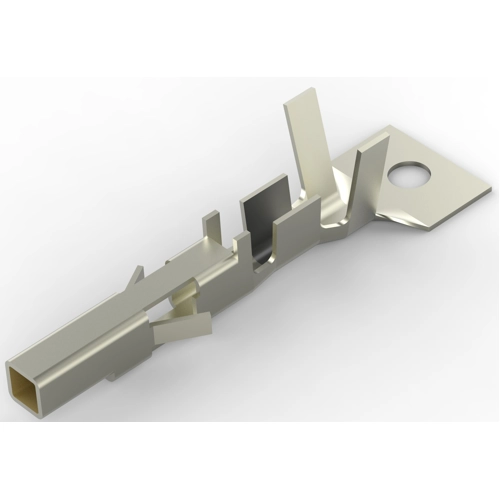

Receptacle, 0.2-0.8 mm², AWG 24-18, crimp connection, gold-plated, 1586315-2
Unit Price (€ / pc.)
0.4522 € *
Available: 0 pcs.
Leadtime: On Request **
Power contact, 1586315-2, AMP
Power contact Type: Contact, Connector System: Wire-to-Board,Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Shape & Form: Single Beam, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 9 A, Contact Type: Socket, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 24 - 18 AWG, Wire Size: 0.2 - 0.8 mm², Accepts Wire Insulation Diameter Range: 1.5 - 2.39 mm, Operating Temperature Range: -40 - 105 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 24-18 | |
| Insulation diameter | 1.5-2.39 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | gold-plated | |
| contact surface | gold-plated | |
| Cable cross-section | 0.2-0.8 mm² |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
