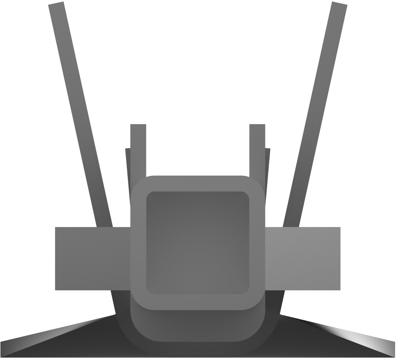

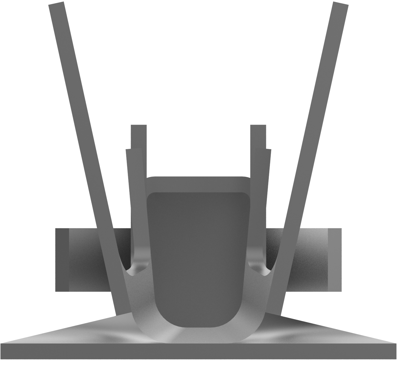

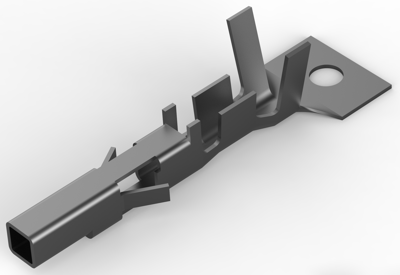

1586315-3 | AMP
Receptacle, 0.2-0.8 mm², AWG 24-18, crimp connection, tin-plated, 1586315-3
Unit Price (€ / pc.)
0.0833 € *
Available: 0 pcs.
Available in 5 Days: 10,510 pcs.
Leadtime: 20 Weeks **
Total Price:
0.08 € *
Price list
Quantity
Price per unit*
2000 pcs.
0.0833 €
7000 pcs.
0.0702 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power contact, 1586315-3, AMP
Power contact Type: Contact, Connector System: Wire-to-Board,Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Shape & Form: Single Beam, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 9 A, Contact Type: Socket, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 24 - 18 AWG, Wire Size: 0.2 - 0.8 mm², Accepts Wire Insulation Diameter Range: 1.5 - 2.39 mm, Operating Temperature Range: -40 - 105 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 24-18 | |
| Insulation diameter | 1.5-2.39 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.2-0.8 mm² |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
