1604055-1 | AMP

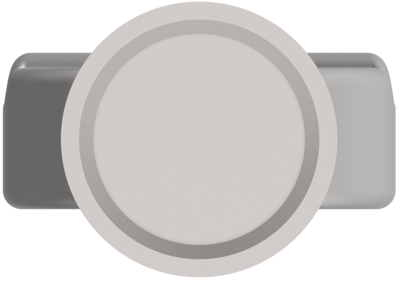

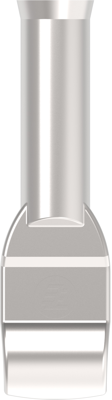

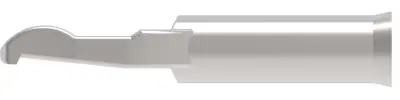

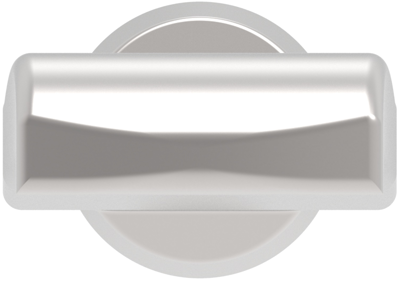

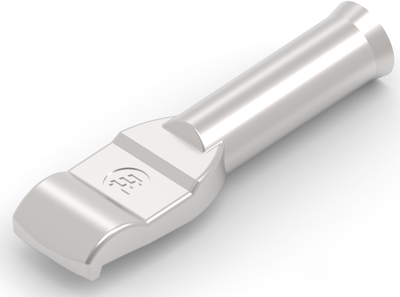

Tab, 40-60 mm², crimp connection, silver-plated, 1604055-1
Unit Price (€ / pc.)
21.8008 € *
Available: 0 pcs.
Available in 5 Days: 25 pcs.
Leadtime: 22 Weeks **
Power contact, 1604055-1, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Silver, Contact Current Rating (Max): 350 A, Contact Type: Tab, Contact Retention Within Housing: With, Mating Tab Width: 20.6 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Size: 1 - 0 AWG, Wire Size: 40 - 60 mm², Wire Size: 78941 - 118412 CMA, Operating Temperature Range: -40 - 105 °C.
Technical specifications
| Version | Flachstecker | |
| Contact connection | Crimpanschluss | |
| Contact material | Kupferlegierung | |
| Contact surface mating area | versilbert | |
| contact surface | versilbert | |
| Cable cross-section | 40-60 mm² |
Download
Logistics
| Country of origin | BE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
