1612290-1 | AMP

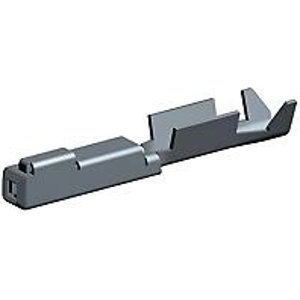

Receptacle, 0.22-0.35 mm², AWG 24-22, crimp connection, tin-plated, 1612290-1
Order No.: 35P8746
EAN: 4099889638905
MPN:
1612290-1
Unit Price (€ / pc.)
0.0964 € *
Available: 0 pcs.
Available in 5 Days: 965,680 pcs.
Leadtime: 29 Weeks **
Total Price:
0.10 € *
Price list
Quantity
Price per unit*
7500 pcs.
0.0964 €
15000 pcs.
0.0904 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contacts for motor vehicles, 1612290-1, AMP
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 0.64 mm, Mating Tab Thickness: 0.64 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 0.22 - 0.35 mm², Wire Size Search: 0.3 mm², 0.35 mm², 0.4 mm², 0.5 mm², Wire Size Search: 23 AWG, 24 AWG, Wire Insulation Diameter: 1.1 - 1.5 mm, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C, Operating Temperature Range: -40 - 125 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 24-22 | |
| Insulation diameter | 1.1-1.5 mm | |
| Contact connection | crimp connection | |
| Contact material | copper alloy | |
| Contact surface Connection range | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.22-0.35 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
