163084-1 | AMP
Receptacle, 0.75-1.5 mm², AWG 18-15, crimp connection, tin-plated, 163084-1
Unit Price (€ / pc.)
0.7973 € *
Available: 6,170 pcs.
Leadtime: On Request **
Total Price:
0.80 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7973 €
250 pcs.
0.7021 €
*incl. VAT plus shipping costs
**Subject to prior sale

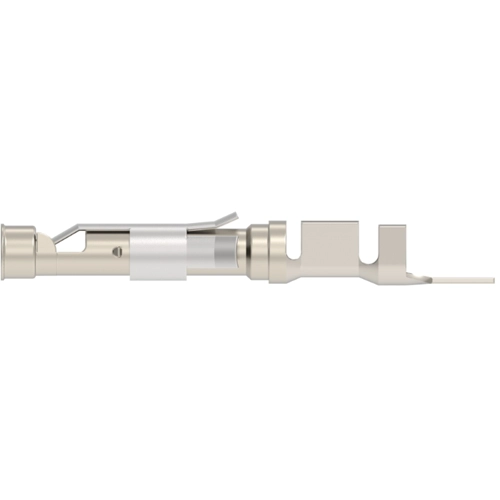

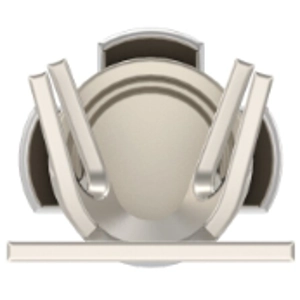

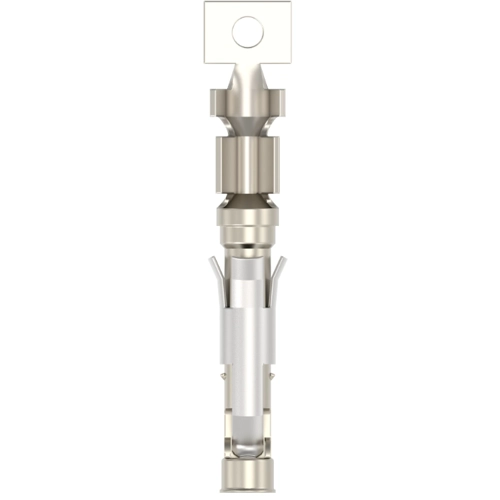

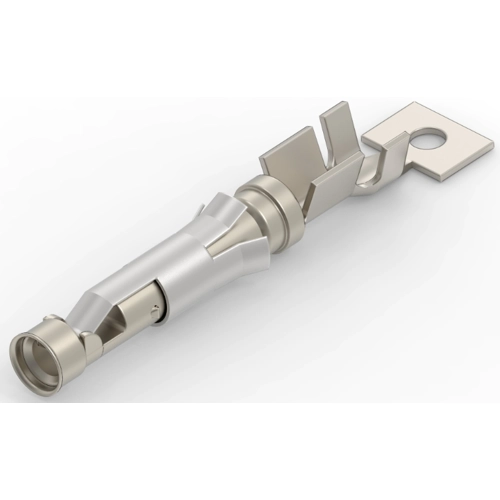

Corresponding snap-in crimp contact, female, type TE Connectivity/AMP IIIplus.
Contact material: copper alloy, tinned. Assembly with appropriate crimp tool.
Technical attributes (type, conductor cross-sections, tinned or gold-plated finish): 0 - 0163084 - 1, 0.75 to 1.5mm²², tinned
Technical specifications
| Ausführung | Buchsenkontakt | |
| AWG-Leiterquerschnitt | AWG 18-15 | |
| Isolationsdurchmesser | 2,01-2,49 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Messing | |
| Kontaktoberfläche Anschlussbereich | verzinnt | |
| Kontaktoberfläche Steckbereich | verzinnt | |
| Kontaktoberfläche | verzinnt | |
| Leiterquerschnitt | 0,75-1,5 mm² |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
