1658537-2 | AMP
Receptacle, 0.2-0.6 mm², AWG 24-20, crimp connection, gold-plated, 1658537-2
Unit Price (€ / pc.)
0.2904 € *
Available: 0 pcs.
Available in 5 Days: 21,667 pcs.
Leadtime: 10 Weeks **
Total Price:
1.45 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2904 €
100 pcs.
0.2559 €
250 pcs.
0.2249 €
500 pcs.
0.1904 €
*incl. VAT plus shipping costs
**Subject to prior sale

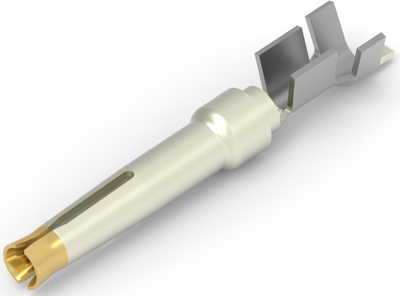

D-Sub connector contact, 1658537-2, AMP
Grade: Standard, Connector System: Cable-to-Cable, Connector & Contact Terminates To: Wire & Cable, Color Code: Red, PCB Contact Termination Area Plating Material: Tin, Contact Type: Socket, D-Sub Contact Size: 20, Contact Base Material: Phosphor Bronze, Contact Mating Area Plating Material: Gold Flash, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 1.27 - 1.52 mm, Wire Size: 24 - 20 AWG, Wire Size: 0.2 - 0.6 mm², Operating Temperature Range: -55 - 105 °C, For Use With: AMPLIMITE HDP-20,CPC Connectors.
Technical specifications
| Ausführung | Buchsenkontakt | |
| AWG-Leiterquerschnitt | AWG 24-20 | |
| Isolationsdurchmesser | 1,27-1,52 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Phosphorbronze | |
| Kontaktoberfläche Anschlussbereich | vernickelt | |
| Kontaktoberfläche Steckbereich | vergoldet | |
| Kontaktoberfläche | vergoldet | |
| Leiterquerschnitt | 0,2-0,6 mm² |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
