1658537-3 | AMP

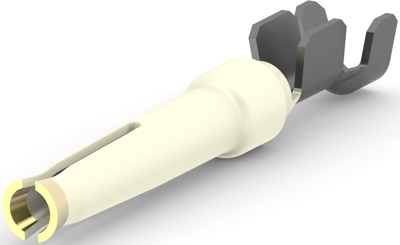

Receptacle, 0.2-0.6 mm², AWG 24-20, crimp connection, 1658537-3
Unit Price (€ / pc.)
0.1297 € *
Available: 0 pcs.
Available in 5 Days: 120,000 pcs.
Leadtime: 4 Weeks **
Total Price:
0.13 € *
Price list
Quantity
Price per unit*
10000 pcs.
0.1297 €
20000 pcs.
0.1238 €
*incl. VAT plus shipping costs
**Subject to prior sale
D-Sub connector contact, 1658537-3, AMP
Grade: Standard, Connector System: Cable-to-Cable, Connector & Contact Terminates To: Wire & Cable, Color Code: Red, PCB Contact Termination Area Plating Material: Tin, Contact Type: Socket, D-Sub Contact Size: 20, Contact Base Material: Phosphor Bronze, Contact Mating Area Plating Material: Gold, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 1.27 - 1.52 mm, Wire Size: 24 - 20 AWG, Wire Size: 0.2 - 0.6 mm², Operating Temperature Range: -55 - 105 °C, For Use With: AMPLIMITE HDP-20,CPC Connectors.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 24-20 | |
| Insulation diameter | 1.27-1.52 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | nickel-plated | |
| Contact surface mating area | gold-plated | |
| Cable cross-section | 0.2-0.6 mm² |
Download
Logistics
| Country of origin | BE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
