1658539-1 | AMP

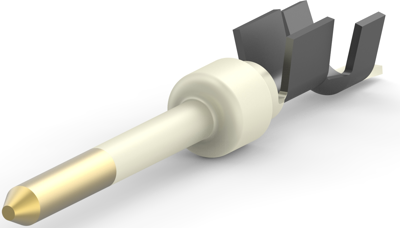

Pin contact, 0.2-0.6 mm², AWG 24-20, crimp connection, 1658539-1
Unit Price (€ / pc.)
0.0797 € *
Available: 0 pcs.
Available in 5 Days: 30,000 pcs.
Leadtime: 14 Weeks **
Total Price:
797.30 € *
Price list
Quantity
Price per unit*
10000 pcs.
0.0797 €
20000 pcs.
0.0750 €
*incl. VAT plus shipping costs
**Subject to prior sale
D-Sub connector contact, 1658539-1, AMP
Grade: Standard, Connector System: Cable-to-Cable, Connector & Contact Terminates To: Wire & Cable, Color Code: Yes, PCB Contact Termination Area Plating Material: Tin, Contact Type: Pin, D-Sub Contact Size: 20, Contact Base Material: Brass, Contact Mating Area Plating Material: Gold, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 1.27 - 1.52 mm, Wire Size: 24 - 20 AWG, Wire Size: 0.2 - 0.6 mm², Operating Temperature Range: -55 - 105 °C, For Use With: AMPLIMITE HDP-20,CPC Connectors.
Technical specifications
| Ausführung | Stiftkontakt | |
| AWG-Leiterquerschnitt | AWG 24-20 | |
| Isolationsdurchmesser | 1,27-1,52 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Messing | |
| Kontaktoberfläche Anschlussbereich | vernickelt | |
| Kontaktoberfläche Steckbereich | vergoldet | |
| Leiterquerschnitt | 0,2-0,6 mm² |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
