1658544-1 | AMP
Pin contact, 0.15-0.4 mm², AWG 26-22, crimp connection, 1658544-1
Unit Price (€ / pc.)
0.3927 € *
Available: 0 pcs.
Available in 5 Days: 427,434 pcs.
Leadtime: 10 Weeks **
Total Price:
0.39 € *
Price list
Quantity
Price per unit*
250 pcs.
0.3927 €
1200 pcs.
0.3689 €
*incl. VAT plus shipping costs
**Subject to prior sale

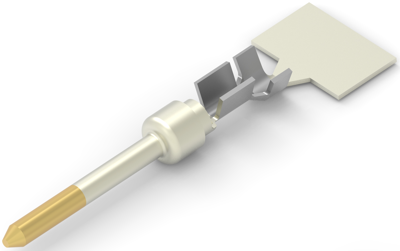

Pin contact, 1658544-1, TE Connectivity
Grade: Standard, Connector System: Cable-to-Cable, Connector & Contact Terminates To: Wire & Cable, Color Code: Yes, PCB Contact Termination Area Plating Material: Tin, Contact Type: Pin, D-Sub Contact Size: 20, Contact Base Material: Brass, Contact Mating Area Plating Material: Gold, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 1.01 - 1.27 mm, Wire Size: 26 - 22 AWG, Wire Size: 0.15 -0.4 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 26-22 | |
| Insulation diameter | 1.01-1.27 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface Connection range | nickel-plated | |
| Contact surface mating area | gold-plated | |
| Cable cross-section | 0.15-0.4 mm² |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
