1658670-2 | AMP

Pin contact, 0.08-0.4 mm², AWG 28-22, crimp connection, gold-plated, 1658670-2

Order No.: 55F6650
EAN: 4099889661033
MPN:
1658670-2
0-1658670-2
Series: AMPLIMITE
AMP

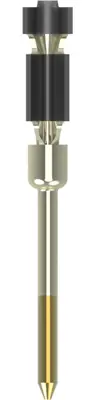

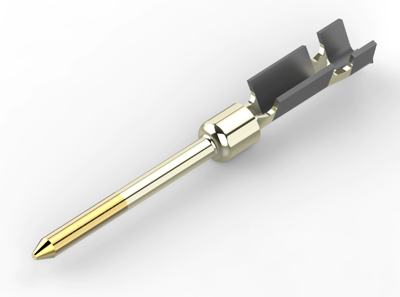

1658670-2 AMP Crimp Contacts Image 1
1658670-2 AMP Crimp Contacts Image 2
1658670-2 AMP Crimp Contacts Image 3
1658670-2 AMP Crimp Contacts Image 4
1658670-2 AMP Crimp Contacts Image 5
Image may differ
Unit Price (€ / pc.)
0.4879 € *
Available: 6,652 pcs.
Leadtime: On Request **
Total Price:
0.49 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4879 €
50 pcs.
0.1404 €
*incl. VAT plus shipping costs
**Subject to prior sale

Corresponding crimp contact, male, type 0-1658.

Contact material: CuZn. Finish: 0.8 µ gold over 1.3 µ nickel. Wire size: AWG 28 - 22 (0.08 - 0.41 mm²). Performance class: 2. Rated current load with conductor cross-section of 0.10/0.41 mm²: 1.5/5.0 A. Corresponding insertion and extraction tools are described below.

Technical attributes (type, number of poles, dimensions): 0-1658670-2, male contact

Technical specifications
Version pin contact
AWG cross-section AWG 28-22
Insulation diameter 0.76-1.02 mm
Contact connection crimp connection
Contact material brass
Contact surface Connection range nickel-plated
Contact surface mating area gold-plated
contact surface gold-plated
Cable cross-section 0.08-0.4 mm²
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
