1658686-2 | AMP

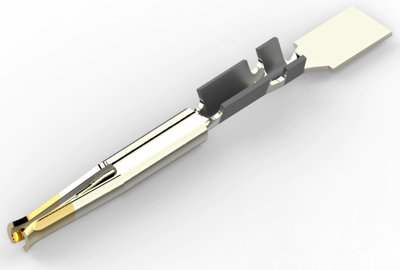

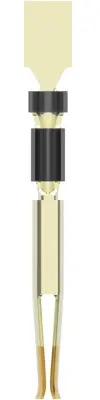

Receptacle, 0.08-0.4 mm², AWG 28-22, crimp connection, gold-plated, 1658686-2
Unit Price (€ / pc.)
0.4879 € *
Available: 1,917 pcs.
Leadtime: On Request **
Total Price:
0.49 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4879 €
50 pcs.
0.2951 €
200 pcs.
0.2606 €
500 pcs.
0.2213 €
*incl. VAT plus shipping costs
**Subject to prior sale
Corresponding crimp contact, female, type 0-1658.
Contact material: CuSn. Contact finish: 0.8 µ gold on 1.3 µ nickel primer. Wire size: AWG 28 - 22 (0.08 - 0.41mm²²). Performance class: 2. Rated current load with conductor cross-section of 0.10/0.41mm²²: 1.5/5.0 A. Corresponding insertion and extraction tools are described below.
Technical attributes (type, number of poles, dimensions): 0 - 1658686 - 2, female contact
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 28-22 | |
| Insulation diameter | 0.76-1.02 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | nickel-plated | |
| Contact surface mating area | gold-plated | |
| contact surface | gold-plated | |
| Cable cross-section | 0.08-0.4 mm² |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
