166294-1 | AMP

Pin contact, 0.08-0.22 mm², AWG 28-24, crimp connection, gold-plated, 166294-1

Order No.: 55F4070
EAN: 4099889660753
MPN:
166294-1
0-0166294-1
Series: AMPLIMITE

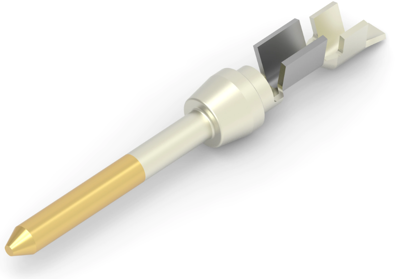

166294-1 AMP Crimp Contacts Image 1

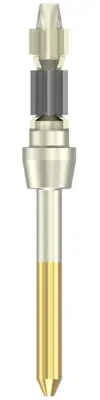

166294-1 AMP Crimp Contacts Image 2
166294-1 AMP Crimp Contacts Image 3
166294-1 AMP Crimp Contacts Image 4
166294-1 AMP Crimp Contacts Image 5
Image may differ
Unit Price (€ / pc.)
0.3094 € *
Available: 591 pcs.
Next delivery: 2,000 pcs. on 2025-06-04
Available in 5 Days: 45,581 pcs.
Leadtime: 17 Weeks **
Total Price:
0.31 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.3094 €

Corresponding crimp contact, type 0-0166.

Made of brass, nickel-plated with flash gold plating.

Technical attributes (type, for conductor cross-section): 0-0166294-1, 0.08 to 0.22 mm²

Technical specifications
Version Stiftkontakt
AWG cross-section AWG 28-24
Insulation diameter 0,76-1,02 mm
Contact connection Crimpanschluss
Contact material Messing
Contact surface Connection range verzinnt
Contact surface mating area vergoldet
contact surface vergoldet
Cable cross-section 0,08-0,22 mm²
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
