167301-4 | AMP

Receptacle, 0.2-0.6 mm², AWG 24-20, crimp connection, gold-plated, 167301-4

Order No.: 37P6687
EAN: 4099889650396
MPN:
167301-4
Series: AMPMODU

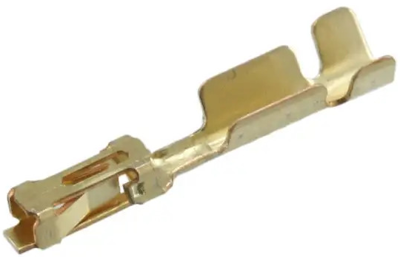

167301-4 AMP Crimp Contacts
Image may differ
Unit Price (€ / pc.)
0.2392 € *
Available: 6,198 pcs.
Available in 5 Days: 87,500 pcs.
Leadtime: 4 Weeks **
Total Price:
2.39 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2392 €
100 pcs.
0.2249 €
500 pcs.
0.2094 €
1000 pcs.
0.1904 €
*incl. VAT plus shipping costs
**Subject to prior sale

Socket contact, 167301-4, AMP

Applied Pressure: Intermediate, Connector System: Wire-to-Board, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 3 A, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 1.4 mm, Wire Size: 24 - 20 AWG, Wire Size: 394.71 - 1184.12 CMA, Wire Size: 0.2 - 0.6 mm², Operating Temperature Range: -65 - 105 °C.

Technical specifications
Version Buchsenkontakt
Cable cross-section 0,2-0,6 mm²
AWG cross-section AWG 24-20
Contact connection Crimpanschluss
Contact material Phosphorbronze
Contact surface mating area vergoldet
contact surface vergoldet
Contact surface Connection range verzinnt
Insulation diameter 1,4 mm
Logistics
Country of origin MX
Customs tariff number 85366990
Original Packaging Rolle mit 17.500 Stück
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
