170021-3 | AMP

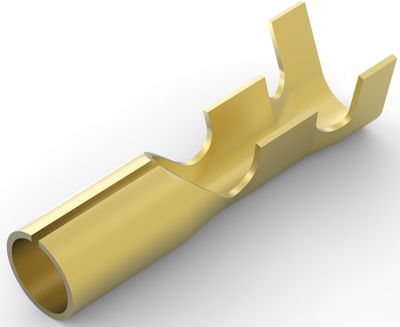

Receptacle, 0.5-2.27 mm², AWG 20-14, crimp connection, tin-plated, 170021-3
Order No.: 35P2589
EAN: 4099889637007
MPN:
170021-3
Unit Price (€ / pc.)
0.1737 € *
Available: 0 pcs.
Leadtime: On Request **
Crimp wire pins, tabs and ferrules, 170021-3, AMP
Crimp Wire Pin, Tab & Ferrule Barrel Type: Open Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Discrete Wire, Insulated: No, Crimp Wire Pin, Tab & Ferrule Plating Material: Tin, Crimp Wire Pin, Tab & Ferrule Terminal Type: Shur-Plug, Crimp Wire Pin, Tab & Ferrule Pin Diameter: 4.7 mm, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Wire Insulation Support: With, Crimp Wire Pin, Tab & Ferrule Wire Insulation Diameter (Max): 3.1 mm, Accepts Wire Insulation Diameter Range: 2.2 - 3.1 mm, Wire Size: 20 - 14 AWG, Wire Size: 0.5 - 2.27 mm², Wire Size: 1021 - 4106 CMA Heavy Duty: No, Crimp Wire Pin, Tab & Ferrule Packaging Method: Bag
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 20-14 | |
| Insulation diameter | 2.2-3.1 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| contact surface | tin-plated | |
| Cable cross-section | 0.5-2.27 mm² |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
