1703014-1 | AMP

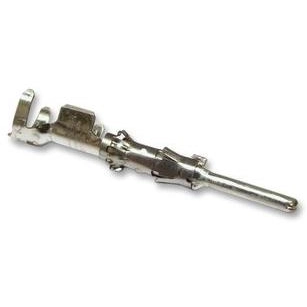

Pin contact, 1.0-2.5 mm², AWG 17-13, crimp connection, tin-plated, 1703014-1
Order No.: 36P2464
EAN: 4099889643848
MPN:
1703014-1
Unit Price (€ / pc.)
0.2142 € *
Available: 0 pcs.
Available in 5 Days: 3,500 pcs.
Leadtime: 16 Weeks **
Total Price:
0.21 € *
Price list
Quantity
Price per unit*
3500 pcs.
0.2142 €
7000 pcs.
0.2083 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin contact, 1703014-1, TE Connectivity
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Pin Diameter: 1.5 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 1 - 2.5 mm², Wire Size Search: 13 AWG, 14 AWG, 15 AWG, 16 AWG, Wire Size Search: 1 mm², 1.25 mm², 1.3 mm², 1.5 mm², 2 mm², 2.5 mm², Wire Insulation Diameter: 2.2 - 3 mm, Operating Temperature Range: -40 - 130 °C.
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 17-13 | |
| Insulation diameter | 2.2-3 mm | |
| Contact connection | crimp connection | |
| Contact material | copper alloy | |
| contact surface | tin-plated | |
| Cable cross-section | 1.0-2.5 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
