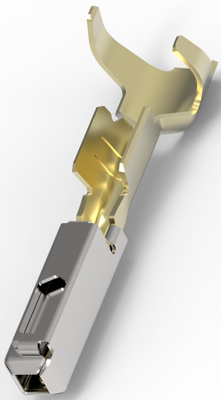

1703032-5 | AMP
Receptacle, 0.5-0.75 mm², AWG 20-18, crimp connection, gold-plated, 1703032-5
Order No.: 36P1304
EAN: 4099889641813
MPN:
1703032-5
Unit Price (€ / pc.)
0.1499 € *
Available: 0 pcs.
Leadtime: On Request **
Contacts for motor vehicles, 1703032-5, AMP
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: .63 mm, Mating Tab Thickness: .63 mm, Automotive terminal Interface Plating: Gold (Au), Automotive terminal Termination Method: Crimp, Wire Size: 20 - 18 AWG, Wire Size: 0.5 - 0.75 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², Wire Size Search: 19 AWG, 20 AWG, Wire Insulation Diameter: 1.4 - 2 mm, Operating Temperature Range: -40 - 120 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 20-18 | |
| Insulation diameter | 1.4-2 mm | |
| Contact connection | crimp connection | |
| Contact material | copper-nickel alloy | |
| contact surface | gold-plated | |
| Cable cross-section | 0.5-0.75 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
