170359-3 | AMP

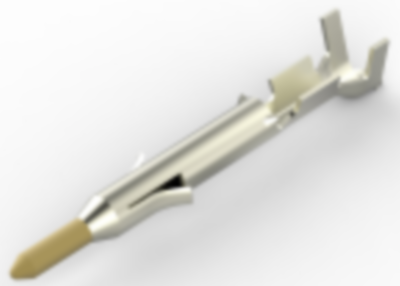

Pin contact, 0.12-0.35 mm², AWG 26-22, crimp connection, gold-plated, 170359-3
Unit Price (€ / pc.)
0.3570 € *
Available: 0 pcs.
Available in 5 Days: 18,000 pcs.
Leadtime: 21 Weeks **
Total Price:
2,142.00 € *
Price list
Quantity
Price per unit*
6000 pcs.
0.3570 €
24000 pcs.
0.3451 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power contact, 170359-3, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 7 A, Contact Type: Pin, Contact Retention Within Housing: With, Mating Pin Diameter: 1 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 26 - 22 AWG, Wire Size: 0.12 -0.35 mm², Accepts Wire Insulation Diameter Range: 1.19 - 1.75 mm, Operating Temperature Range: -20 - 105 °C.
Technical specifications
| Version | Stiftkontakt | |
| Cable cross-section | 0,12-0,35 mm² | |
| AWG cross-section | AWG 26-22 | |
| Contact connection | Crimpanschluss | |
| Contact material | Messing | |
| Contact surface mating area | vergoldet | |
| contact surface | vergoldet | |
| Contact surface Connection range | vergoldet | |
| Insulation diameter | 1,19-1,75 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
| Original Packaging | Rolle mit 6.000 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
