170362-1 | AMP
Receptacle, 0.3-0.89 mm², AWG 22-18, crimp connection, tin-plated, 170362-1
Unit Price (€ / pc.)
0.1249 € *
Available: 0 pcs.
Available in 5 Days: 168,000 pcs.
Leadtime: 22 Weeks **

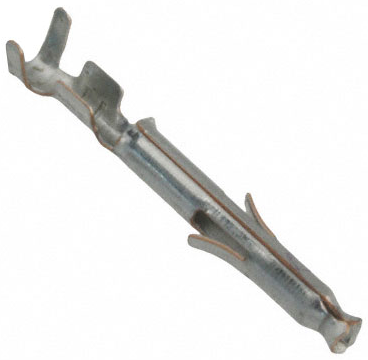

Socket contact, 170362-1, AMP
Power Contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 7 A, Contact Type: Socket, Contact Retention Within Housing: With, Mating Pin Diameter: 1 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 22 - 18 AWG, Wire Size: 0.3 - 0.89 mm², Accepts Wire Insulation Diameter Range: 1.5 - 2.4 mm,3.4 mm, Operating Temperature Range: -20 - 105 °C.
Technical specifications
| Version | Buchsenkontakt | |
| Cable cross-section | 0,3-0,89 mm² | |
| AWG cross-section | AWG 22-18 | |
| Contact connection | Crimpanschluss | |
| Contact material | Messing | |
| Contact surface mating area | verzinnt | |
| contact surface | verzinnt | |
| Contact surface Connection range | verzinnt | |
| Insulation diameter | 1,5-2,4 mm |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366990 |
| Original Packaging | Rolle mit 4.000 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
