170366-1 | AMP

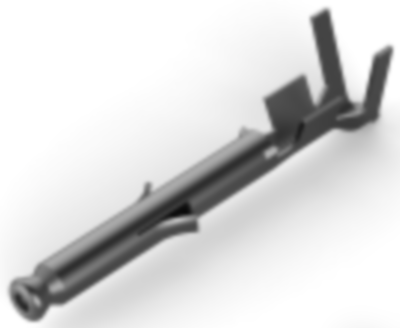

Receptacle, 0.3-0.89 mm², AWG 22-18, crimp connection, tin-plated, 170366-1
Unit Price (€ / pc.)
0.1214 € *
Available: 1,609 pcs.
Leadtime: On Request **
Total Price:
1.21 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1214 €
100 pcs.
0.1095 €
500 pcs.
0.1000 €
*incl. VAT plus shipping costs
**Subject to prior sale
Corresponding snap-in female crimp contact, type 0-017.
Made of CuZn special alloy, tinned.
Technical attributes (type, conductor cross-section): 0-0170366-1, 0.35 to 0.89 mm², tinned
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 22-18 | |
| Insulation diameter | 1.5-3.4 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.3-0.89 mm² |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
