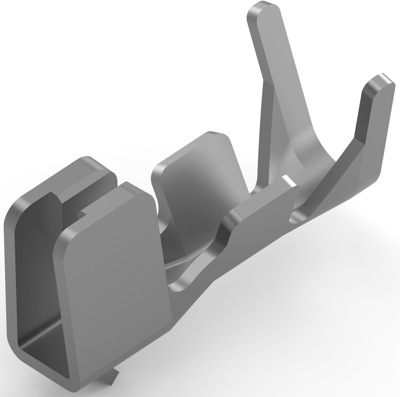

170369-1 | AMP
Receptacle, 0.12-0.4 mm², AWG 26-22, crimp connection, 170369-1
Order No.: 37P1182
EAN: 4099889648560
MPN:
170369-1
Unit Price (€ / pc.)
0.0738 € *
Available: 0 pcs.
Available in 5 Days: 32,868 pcs.
Leadtime: 19 Weeks **
Total Price:
0.07 € *
Price list
Quantity
Price per unit*
2000 pcs.
0.0738 €
6000 pcs.
0.0678 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket contact, 170369-1, AMP
Connector System: Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Insulation Resistance: 500 MΩ, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 2 A, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 1.09 - 1.91 mm, Wire Size: 26 - 22 AWG, Wire Size: 0.12 - 0.4 mm², Operating Temperature Range: -20 - 105 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 26-22 | |
| Insulation diameter | 1.09-1.91 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| Cable cross-section | 0.12-0.4 mm² |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
