170430-2 | AMP

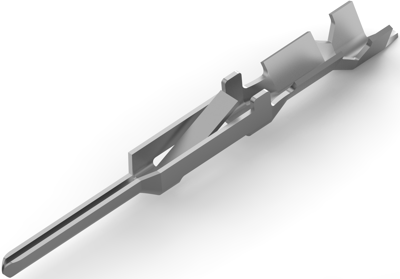

Pin contact, 0.05-0.15 mm², AWG 30-26, crimp connection, 170430-2
Order No.: 37P1163
EAN: 4099889648423
MPN:
170430-2
Unit Price (€ / pc.)
0.1369 € *
Available: 0 pcs.
Available in 5 Days: 7,500 pcs.
Leadtime: 19 Weeks **
Total Price:
0.14 € *
Price list
Quantity
Price per unit*
750 pcs.
0.1369 €
3700 pcs.
0.1333 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin contact, 170430-2, TE Connectivity
Connector System: Wire-to-Board,Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Contact Base Material: Phosphor Bronze, Contact Type: Pin, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 2 A, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 1 - 1.4 mm, Wire Size: 30 - 26 AWG, Wire Size: 0.05 -0.15 mm², Operating Temperature Range: -20 - 95 °C.
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 30-26 | |
| Insulation diameter | 1-1.4 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| Cable cross-section | 0.05-0.15 mm² |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
