171638-1 | AMP

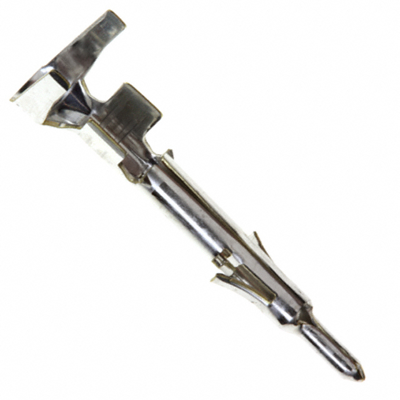

Pin contact, 0.5-1.3 mm², AWG 20-16, crimp connection, tin-plated, 171638-1
Unit Price (€ / pc.)
0.1595 € *
Available: 940 pcs.
Leadtime: 2 Weeks **
Total Price:
0.80 € *
Price list
Quantity
Price per unit*
5 pcs.
0.1595 €
10 pcs.
0.1404 €
50 pcs.
0.1190 €
100 pcs.
0.0976 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power contact, 171638-1, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Shape & Form: Square, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 7 A, Contact Type: Pin, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 20 - 16 AWG, Wire Size: 0.5 - 1.3 mm², Accepts Wire Insulation Diameter Range: 2 - 3.2 mm, 2.4 mm, Operating Temperature Range: -20 - 105 °C.
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 20-16 | |
| Insulation diameter | 2-3.2 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.5-1.3 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
