1719532-5 | AMP

Name: Receptacle, 0.75-1.0 mm², AWG 18-17, crimp connection, gold-plated, 1719532-5
Brand: AMP
SKU: 36P1302
Price: 0.16 EUR
Availability: OutOfStock

Receptacle, 0.75-1.0 mm², AWG 18-17, crimp connection, gold-plated, 1719532-5

Order No.: 36P1302

EAN: 4099889641790

MPN:

1719532-5

Series: MQS

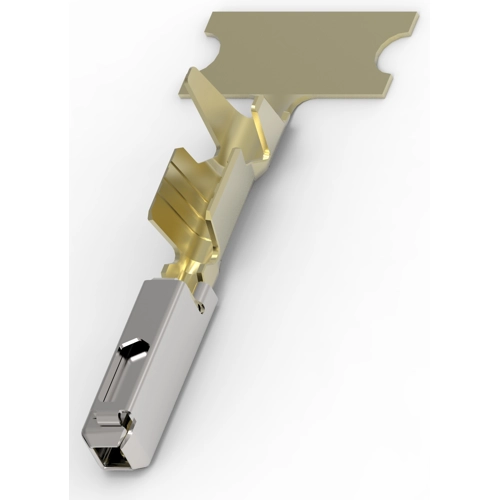

Image may differ

Key Specification:

Ausführung Buchsenkontakt

Leiterquerschnitt 0,75-1,0 mm²

AWG-Leiterquerschnitt AWG 18-17

Kontaktanschluss Crimpanschluss

Kontaktmaterial Kupfer

Ordering Information:

Nicht an Privatkunden verkäuflich

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.1583 € *

Available: 0 pcs.

Available in 5 Days: 17,348 pcs.

Leadtime: 20 Weeks **

Add to Cart

Total Price:

0.16 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Contacts for motor vehicles, 1719532-5, TE Connectivity

Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Automotive terminal Seal Type: Family Seal, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 0.63 mm, Mating Tab Thickness: 0.63 mm, Automotive terminal Interface Plating: Silver (Ag), Automotive terminal Termination Method: Crimp, Wire Size: 18 AWG, Wire Size: 0.75 - 1 mm², Wire Size Search: 0.75 mm², 0.85 mm², 1 mm², Wire Insulation Diameter: 1.4 - 2 mm, Operating Temperature Range: -40 - 140 °C.

Technical specifications

	Ausführung	Buchsenkontakt
	AWG-Leiterquerschnitt	AWG 18-17
	Isolationsdurchmesser	1,4-2 mm
	Kontaktanschluss	Crimpanschluss
	Kontaktmaterial	Kupfer
	Kontaktoberfläche	vergoldet
	Leiterquerschnitt	0,75-1,0 mm²
