175104-2 | AMP

Name: Receptacle, 0.5-1.25 mm², AWG 20-16, crimp connection, gold-plated, 175104-2
Brand: AMP
SKU: 36P1833
Price: 0.57 EUR
Availability: OutOfStock

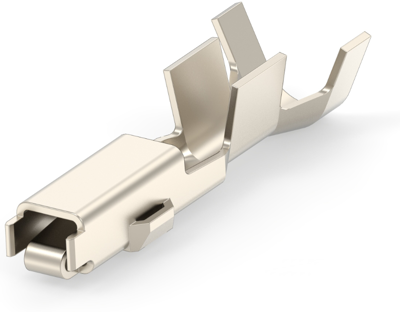

Receptacle, 0.5-1.25 mm², AWG 20-16, crimp connection, gold-plated, 175104-2

Order No.: 36P1833

EAN: 4099889642995

MPN:

175104-2

Series: Multilock

Image may differ

Key Specification:

Ausführung Buchsenkontakt

Leiterquerschnitt 0,5-1,25 mm²

AWG-Leiterquerschnitt AWG 20-16

Kontaktanschluss Crimpanschluss

Kontaktmaterial Phosphorbronze

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.5712 € *

Available: 0 pcs.

Leadtime: 26 Weeks **

Add to Cart

Total Price:

0.57 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Contacts for motor vehicles, 175104-2, AMP

Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1.8 mm, Mating Tab Thickness: 0.64 mm, Automotive terminal Interface Plating: Gold (Au), Automotive terminal Termination Method: Crimp, Wire Size: 0.5 - 1.25 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 0.85 mm², 1 mm², 1.25 mm², Wire Size Search: 16 AWG, 17 AWG, 18 AWG, 19 AWG, Wire Insulation Diameter: 2 - 2.6 mm.

Technical specifications

	Ausführung	Buchsenkontakt
	AWG-Leiterquerschnitt	AWG 20-16
	Isolationsdurchmesser	2-2,6 mm
	Kontaktanschluss	Crimpanschluss
	Kontaktmaterial	Phosphorbronze
	Kontaktoberfläche Anschlussbereich	vergoldet
	Kontaktoberfläche	vergoldet
	Leiterquerschnitt	0,5-1,25 mm²
