175156-2 | AMP

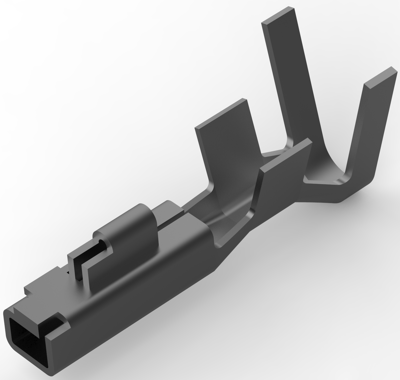

Receptacle, 0.5-1.42 mm², AWG 20-16, crimp connection, 175156-2
Unit Price (€ / pc.)
0.0512 € *
Available: 0 pcs.
Available in 5 Days: 41,601 pcs.
Leadtime: 14 Weeks **
Total Price:
0.05 € *
Price list
Quantity
Price per unit*
2000 pcs.
0.0512 €
18000 pcs.
0.0452 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power contact, 175156-2, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 50 VAC, 300 VAC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 12 A, Contact Type: Receptacle, Contact Retention Within Housing: With, Mating Tab Width: 1.2 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 20 - 16 AWG, Wire Size: 0.5 - 1.42 mm², Accepts Wire Insulation Diameter Range: 1.7 - 3.3 mm, Operating Temperature Range: -30 - 105 °C.
Technical specifications
| Ausführung | Buchsenkontakt | |
| AWG-Leiterquerschnitt | AWG 20-16 | |
| Isolationsdurchmesser | 1,7-3,3 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Messing | |
| Kontaktoberfläche Anschlussbereich | verzinnt | |
| Kontaktoberfläche Steckbereich | verzinnt | |
| Leiterquerschnitt | 0,5-1,42 mm² |
Download
Logistics
| Ursprungsland | TH |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
