175180-1 | AMP

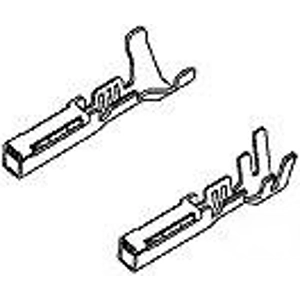

Receptacle, 0.3-0.5 mm², AWG 22-20, crimp connection, tin-plated, 175180-1
Unit Price (€ / pc.)
0.1047 € *
Available: 0 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 19 Weeks **
Total Price:
0.10 € *
Price list
Quantity
Price per unit*
5000 pcs.
0.1047 €
10000 pcs.
0.0940 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket contact, 175180-1, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1 mm, Mating Tab Thickness: 0.64 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 0.3 -0.5 mm², Wire Size Search: 20 AWG, 21 AWG, Wire Size Search: 0.3 mm², 0.35 mm², 0.4 mm², 0.5 mm², Wire Insulation Diameter: 1.1 - 1.4 mm, Operating Temperature Range: -30 - 105 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 22-20 | |
| Insulation diameter | 1.1-1.4 mm | |
| Contact connection | crimp connection | |
| Contact material | tin | |
| Contact surface Connection range | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.3-0.5 mm² |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
