181270-3 | AMP
Receptacle, 0.13-0.32 mm², AWG 26-22, crimp connection, 181270-3
Unit Price (€ / pc.)
0.3927 € *
Available: 0 pcs.
Available in 5 Days: 8,405 pcs.
Leadtime: 15 Weeks **
Total Price:
0.39 € *
Price list
Quantity
Price per unit*
250 pcs.
0.3927 €
1300 pcs.
0.3332 €
*incl. VAT plus shipping costs
**Subject to prior sale

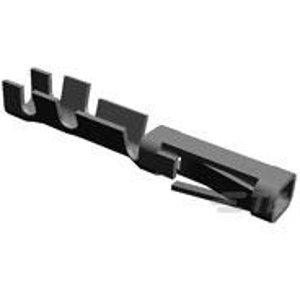

Socket contact, 181270-3, TE Connectivity
Applied Pressure: Standard, Connector System: Board-to-Board, Connector & Contact Terminates To: Printed Circuit Board, Operating Voltage: 40 VAC, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 3 A, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 0.9 - 1.55 mm, Wire Size: 22 - 26 AWG, Wire Size: 631.52 - 256.56 CMA, Wire Size: 0.32 -0.13 mm², Operating Temperature Range: -40 - 80 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 26-22 | |
| Insulation diameter | 0.9-1.55 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | gold-plated | |
| Contact surface mating area | gold-plated | |
| Cable cross-section | 0.13-0.32 mm² |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
